FibreFlex® FAB
Polyester Acoustic Insulation
FibreFlex® FAB are acoustic insulation products made from 100% polyester, and has been specifically designed for noise critical applications in commercial and industrial applications.
Available in a range of densities and thicknesses, FibreFlex® FAB provides excellent acoustic transmission control and noise absorption properties.
Product Advantages
-
Available in a range of densities and thicknesses to suit various applications.
-
Designed to provide excellent acoustic performance with thermal benefits.
-
Non Toxic, Non Irritant & Odourless.
-
Recycled Polyester Fibre.
-
100% Recyclable.
-
Manufactured in Australia.
Applications
Acoustic Blanket.
Blank one so all stay closed
Product Details
| Product Name | FibreFlex® FAB |
| Product Code | FAB ______ (Density kg/m3) ______ (Thickness mm) R/S (Rolls or Sheets) |

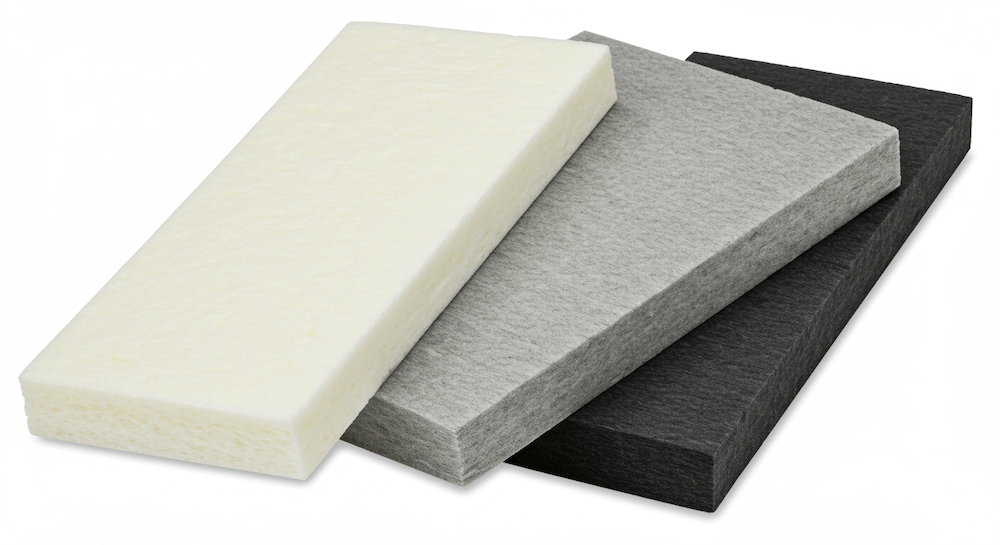

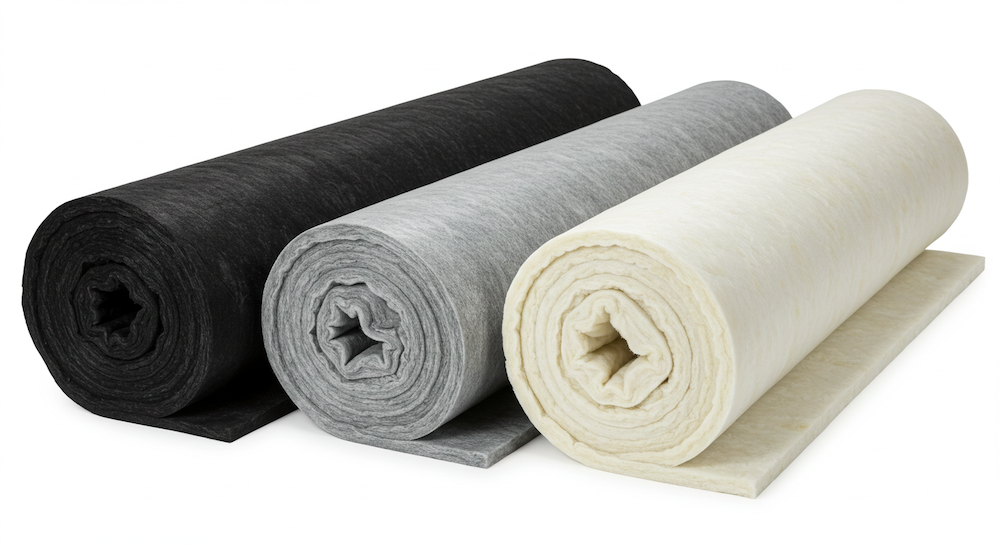

| Product Size | Available in rolls or sheets (2.4m x 1.2m) |
Acoustic & Thermal Values
| Product / Density / Thickness | NRC | *Calculated R-value (m2K/W) |
|---|---|---|
| FAB 11/25 | 0.45 | R0.50* |
| FAB 11/50 | 0.55 | R1.00* |
| FAB 11/75 | 0.70 | R1.50* |
| FAB 11/100 | 0.80 | R2.00* |
| FAB 14/25 | 0.55 | R0.60* |
| FAB 14/50 | 0.65 | R1.10* |
| FAB 14/75 | 0.75 | R1.60* |
| FAB 14/100 | 0.85 | R2.20* |
| FAB 20/25 | 0.65 | R0.60* |
| FAB 20/50 | 0.80 | R1.20* |
| FAB 20/75 | 0.90 | R1.90* |
| FAB 20/100 | 0.95 | R2.50* |
| FAB 32/25 | 0.75 | R0.70* |
| FAB 32/50 | 0.90 | R1.50* |
| FAB 32/75 | 0.95 | R2.20* |
| FAB 32/100 | 1.00 | R2.70* |
| FAB 48/25 | 0.70 | R0.70* |
| FAB 48/50 | 0.85 | R1.50* |
| FAB 48/75 | 1.00 | R2.20* |
Product Testing
Summary of Testing Results
| Acoustic | Refer to table above | |
| Thermal | AS/NZ 4859.1:2018 | Refer to table above |
| Ignitability Index | AS 1530.3 | 0 |
| Spread of Flame Index | AS 1530.3 | 0 |
| Heat Evolved Index | AS 1530.3 | 0 |
| Smoke Developed Index | AS 1530.3 | 0-1 |
Specification Notes
When specifying, state the following:
Product Name: FibreFlex® Industries FAB ____ (specify FAB Density and Thickness)
The insulation material to be installed shall be FibreFlex® Industries FAB and shall be installed in accordance with AS 3999.
The product must have the following properties:
Acoustic Value: NRC____ (specify required NRC Value)
Fire Hazard Properties: Tested in accordance with AS/NZS 1530.3
Installation Instructions
FibreFlex® FAB Installation Instructions: Please select the following applications for detail:
- Ceiling Installation
- Wall Installation
- Floor Installation
