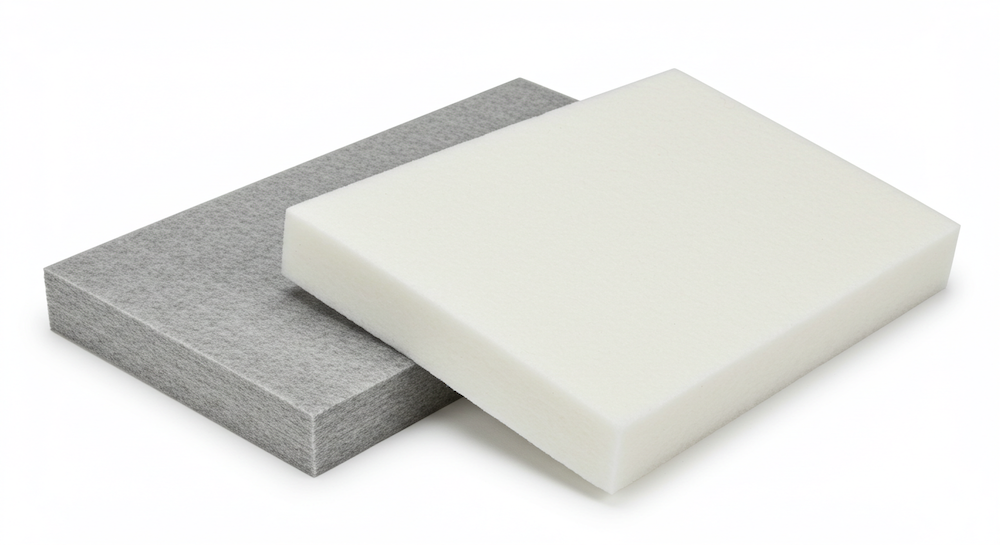

FibreFlex® Ceiling Baffle
Polyester Acoustic Insulation

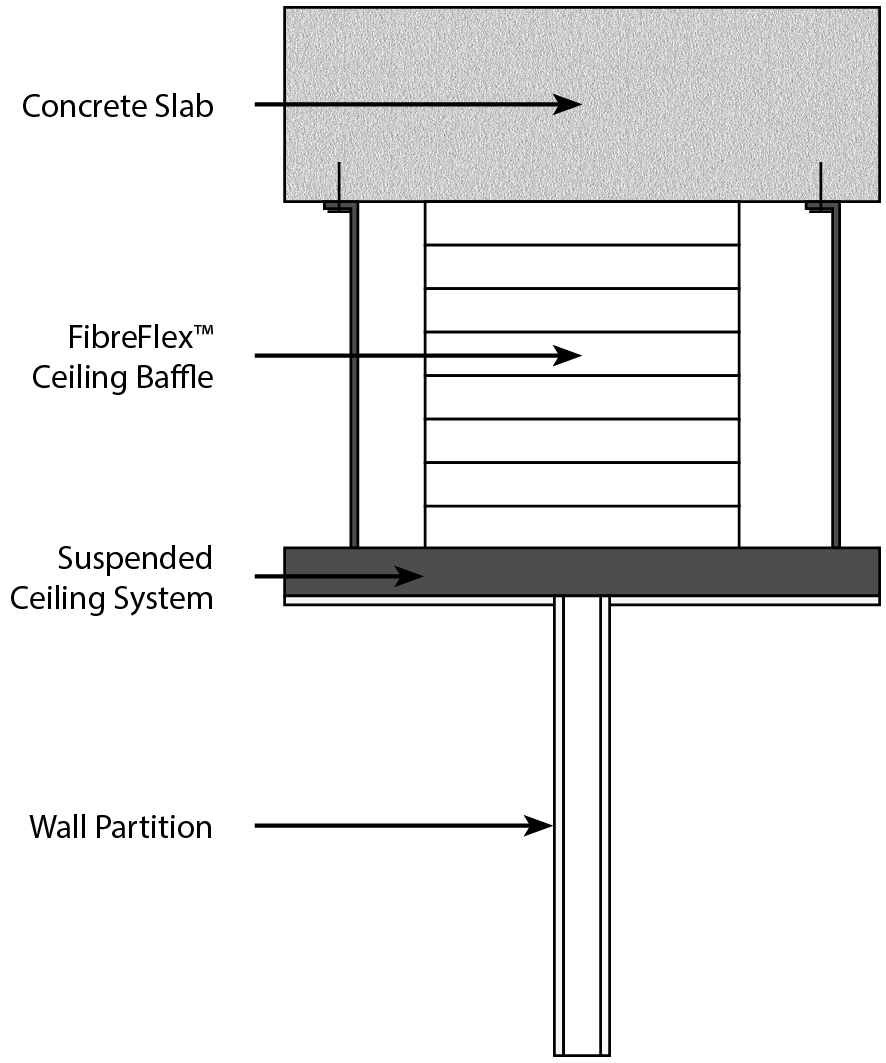

FibreFlex® Ceiling Baffle is an acoustic insulation product made from 100% polyester, specifically designed to be stacked in layers above partition walls.
FibreFlex® Ceiling Baffle helps minimise sound transmission through suspended ceiling spaces and is manufactured in a convenient size for installation..
Product Advantages
-
Enhance building acoustic performance and lower sound transmission.
-
Non Toxic, Non Irritant & Odourless.
-
Recycled Polyester Fibre.
-
100% Recyclable.
-
Manufactured in Australia.
Applications
Acoustic Ceiling Baffle.
Blank one so all stay closed
Product Details
| Product Name | FibreFlex® Ceiling Baffle |
| Product Code | CEILBAFF |
| Product Size | 600mm x 1200mm; Thickness 100mm |
Acoustic Values
| Nominal Thickness | NRC | |
|---|---|---|
| 100mm | AS/ISO 354 | 0.85 |
Product Testing
Summary of Testing Results
| Acoustic | Refer to table above | |
| Ignitability Index | AS 1530.3 | 0 |
| Spread of Flame Index | AS 1530.3 | 0 |
| Heat Evolved Index | AS 1530.3 | 0 |
| Smoke Developed Index | AS 1530.3 | 0-1 |
Specification Notes
When specifying, state the following:
Product Name: FibreFlex® Industries Ceiling Baffle
The insulation material to be installed shall be FibreFlex® Industries Ceiling Baffle and shall be installed in accordance with AS 3999.
The product must have the following properties:
NRC Value: 0.85
Fire Hazard Properties: Tested in accordance with AS/NZS 1530.3
Installation Instructions
FibreFlex® Ceiling Baffle Installation Instructions: Please select the following applications for detail:
- Ceiling Installation
